We offer various Silicon and TPX optics for THz beam guiding.
For mapping old to new part numbers please see here!
| Old Part No. | New Part No. |
|---|---|
| HSL-12 | LSH-D12-T7.13 |
| CSL-20 | LSA-D20-T13.77 |
| FSL-D20-f50 | LSA-D20-T14-F50 |
| TPX-D25.4-f10 | LTA-D25.4-F10 |
| TPX-D25.4-f15 | LTA-D25.4-F15 |
| TPX-D25.4-f25 | LTA-D25.4-F25 |
| TPX-D25.4-f32.5 | LTA-D25.4-F32.5 |
| TPX-D25.4-f50 | LTA-D25.4-F50 |
| TPX-D25.4-f67 | LTA-D25.4-F67 |
| TPX-D25.4-f100 | LTS-D25.4-F100 |
| TPX-D25.4-f150 | LTS-D25.4-F150 |
| TPX-D50-f35 | LTA-D50-F35 |
| TPX-D50.8-f65 | LTA-D50-F65 |
| TPX-D50.8-f100 | LTA-D50-F100 |
| TPX-D50.8-f200 | LTS-D50-F200 |
| TPX-D50.8-f250 | LTS-D50-F250 |

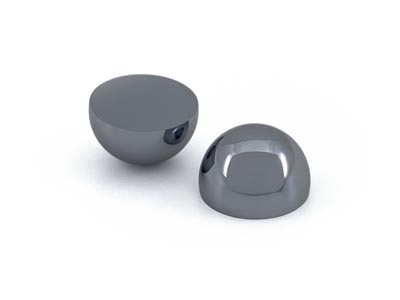

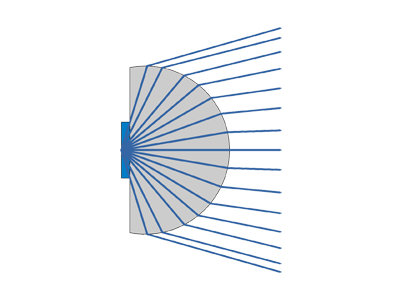

> LSH-D12-T7.13 (Hyperhemispheric Silicon Lens)
The hyperhemispherical silicon lens (LSH-D12-T7.13) with a diameter of 12 mm has been developed for the control of THz radiation from a GaAs PCA chip and generates a divergent THz beam.
The transmitted THz beam has to be collimated with an additional lens. Therefore we recommend our TPX lens LTA-D25.4-F32.5.

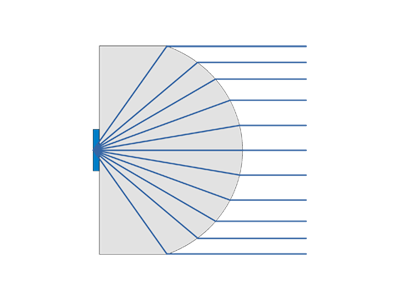

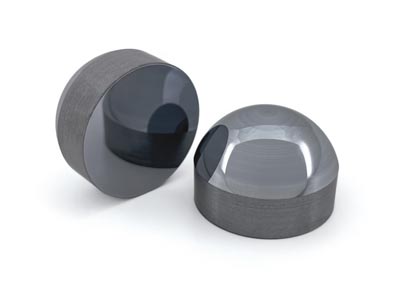

> LSA-D20-T13.77 (Collimating Silicon Lens)
The aspheric collimating silicon lens (LSA-D20-T13.77) with a diameter of 20 mm has been developed for the control of THz radiation from a GaAs PCA chip and generates a collimated THz beam.

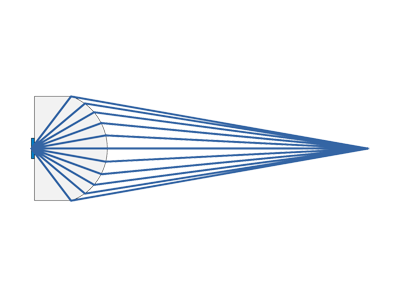

> LSA-D20-T14-F50 (Focusing Silicon Lens)
The aspheric focusing silicon lens with 20 mm of diameter has been developed for the control of THz radiation from a GaAs PCA chip and generates a focused THz beam.

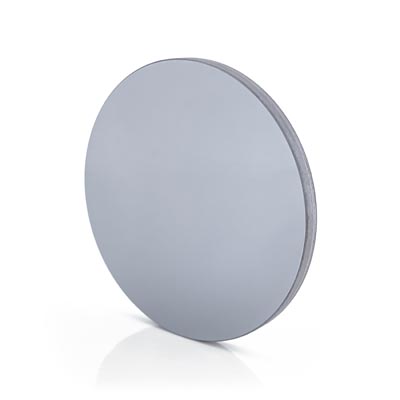

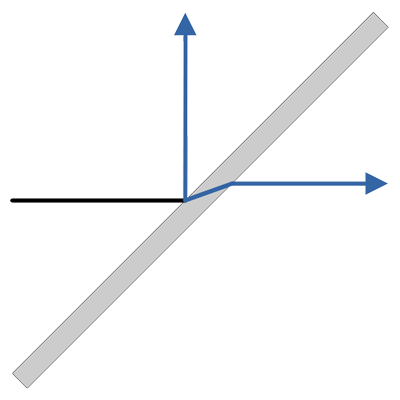

> BSS-D50.8-T3.5
The silicon beam splitter (BSS-D50.8-T3.5) has been developed for single pass applications.

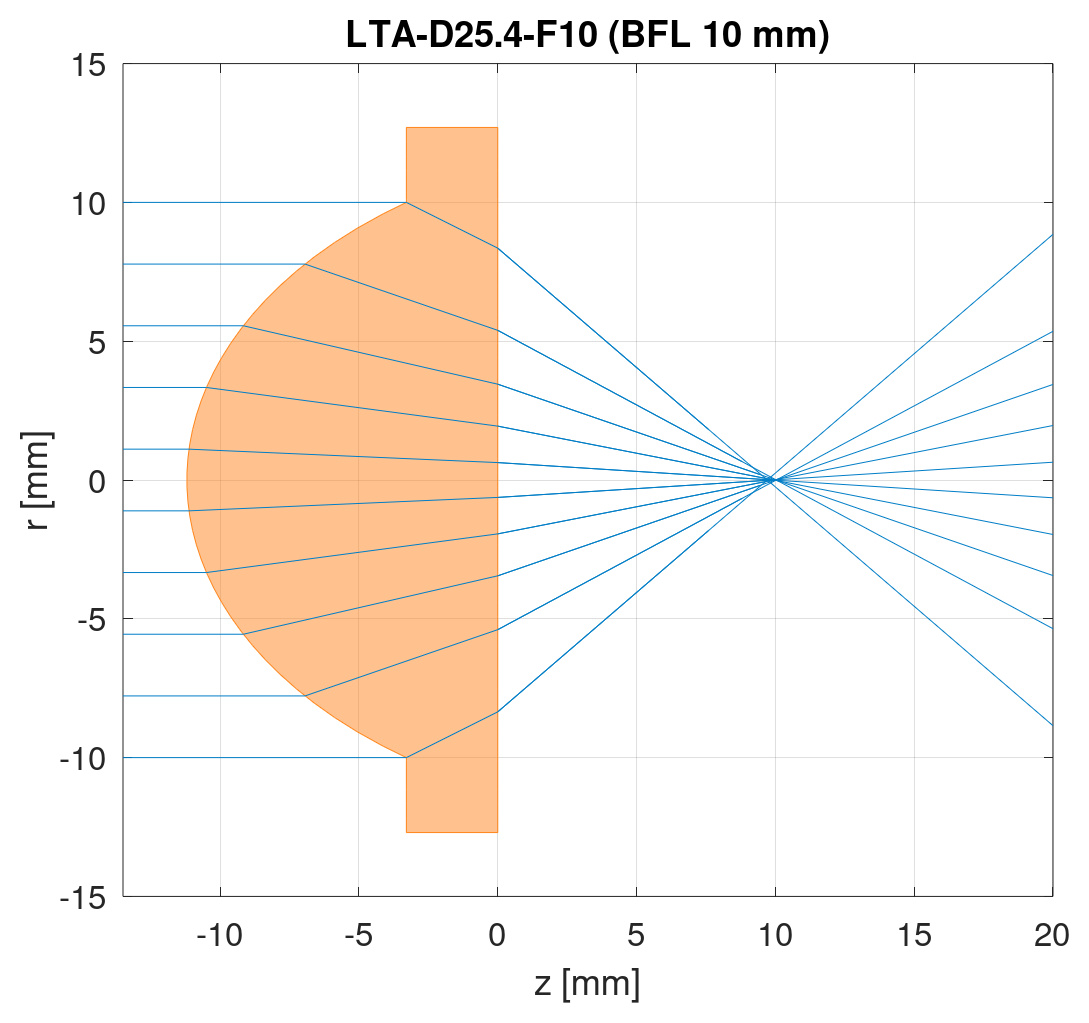

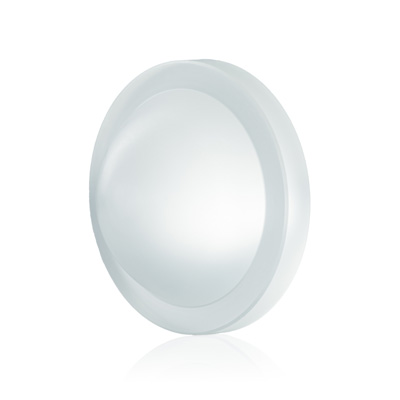

> LTA-D25.4-F10

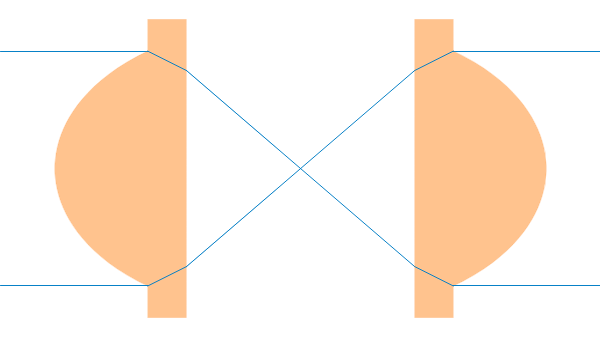

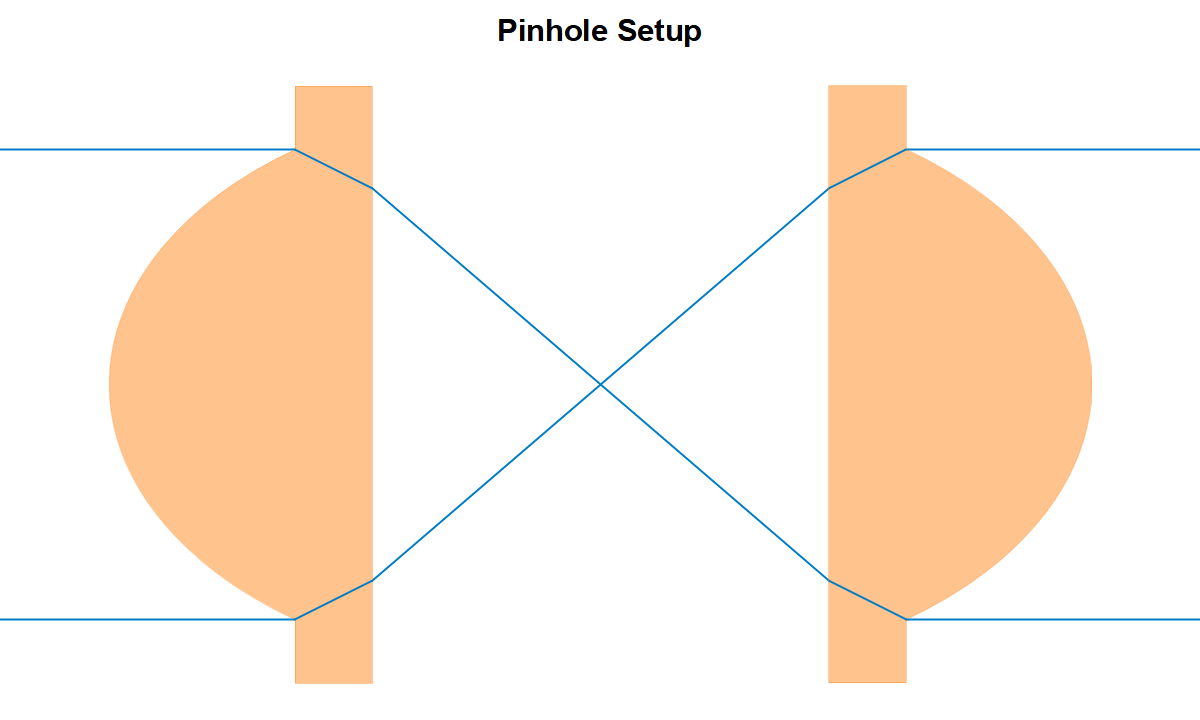

For measurements with a high spatial resolution we recommend the combination of two LTA-D25.4-F10 in a pinhole setup.

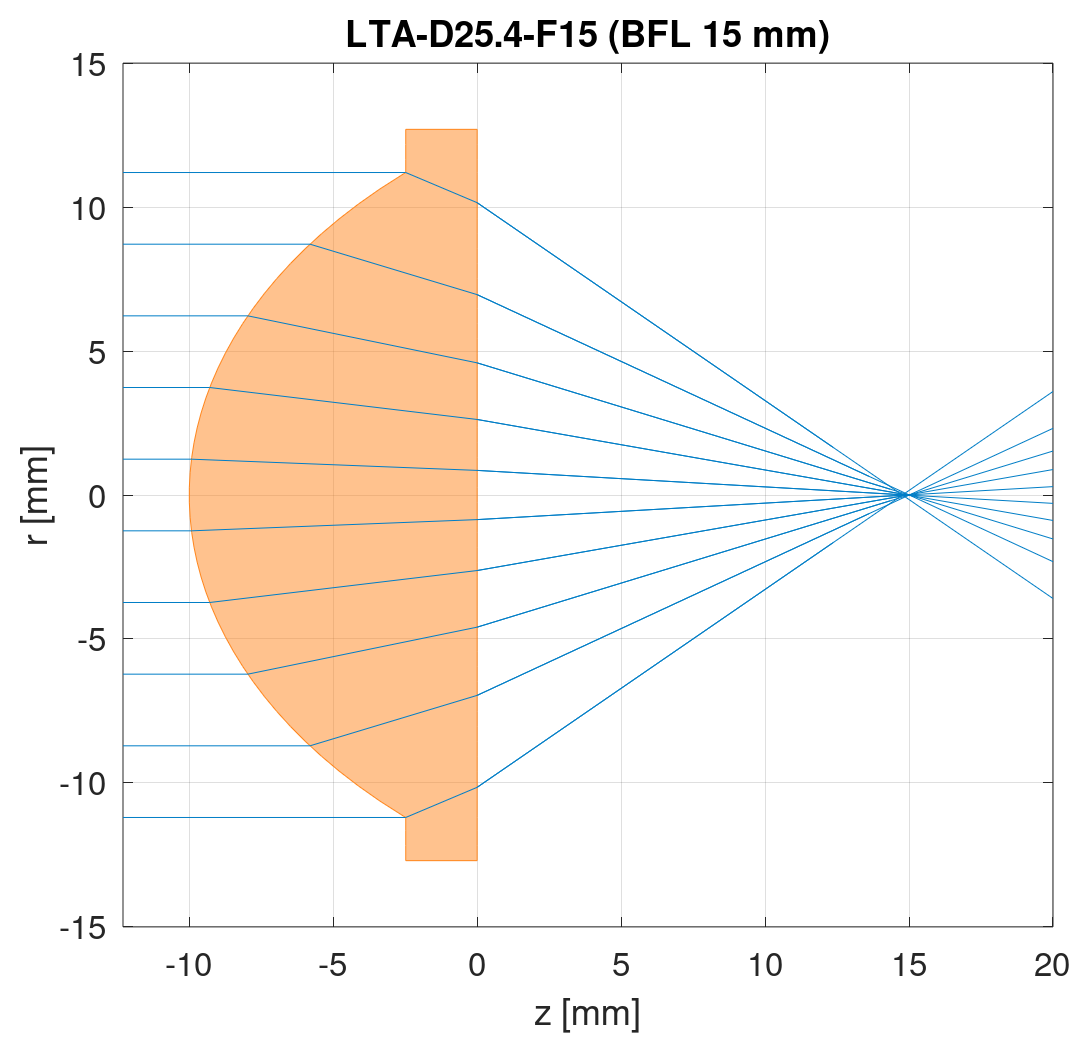

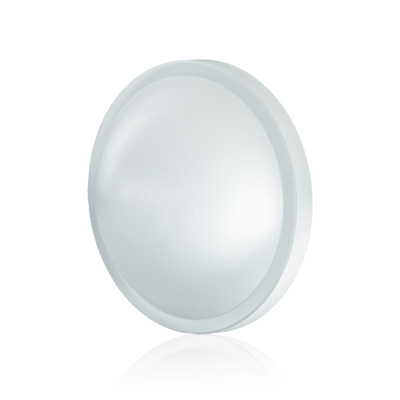

> LTA-D25.4-F15

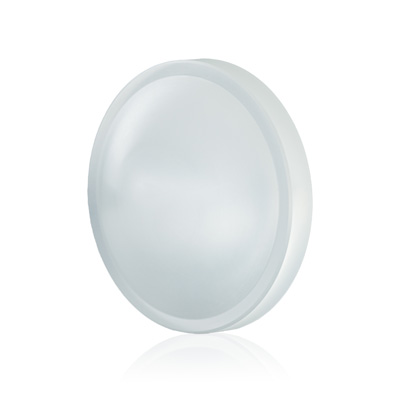

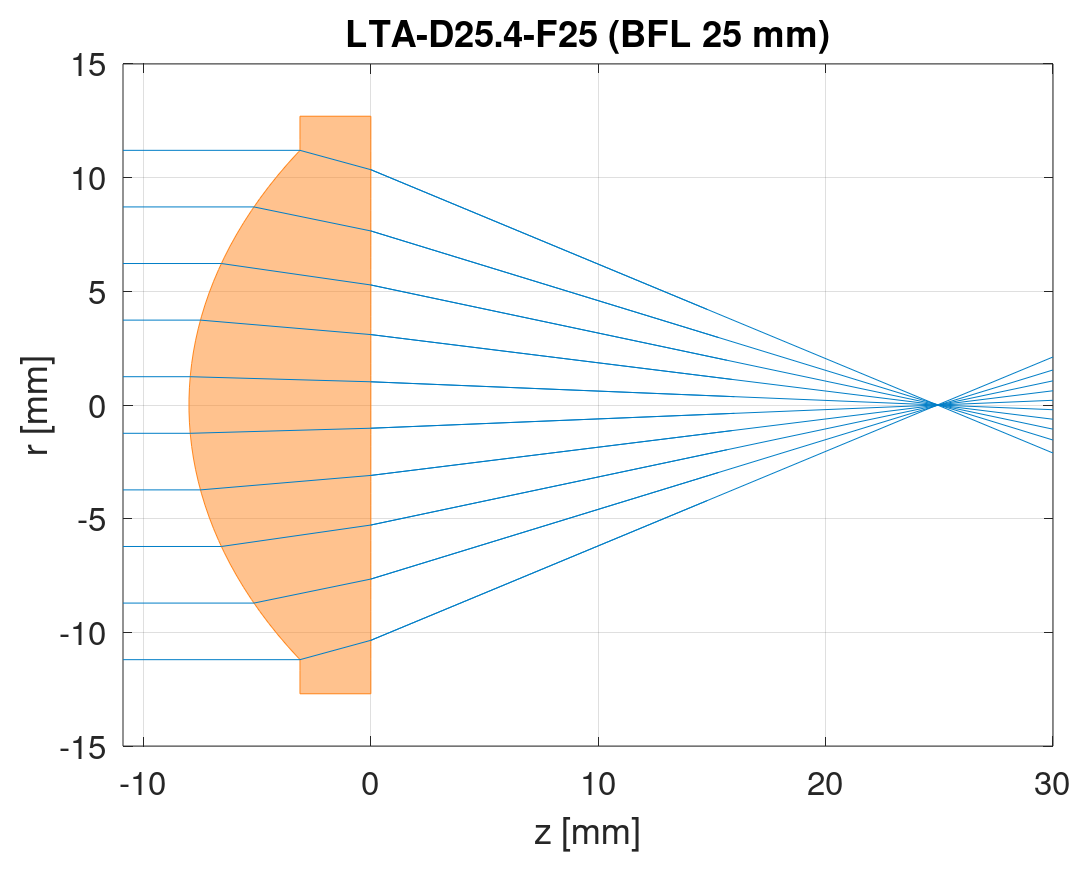

> LTA-D25.4-F25

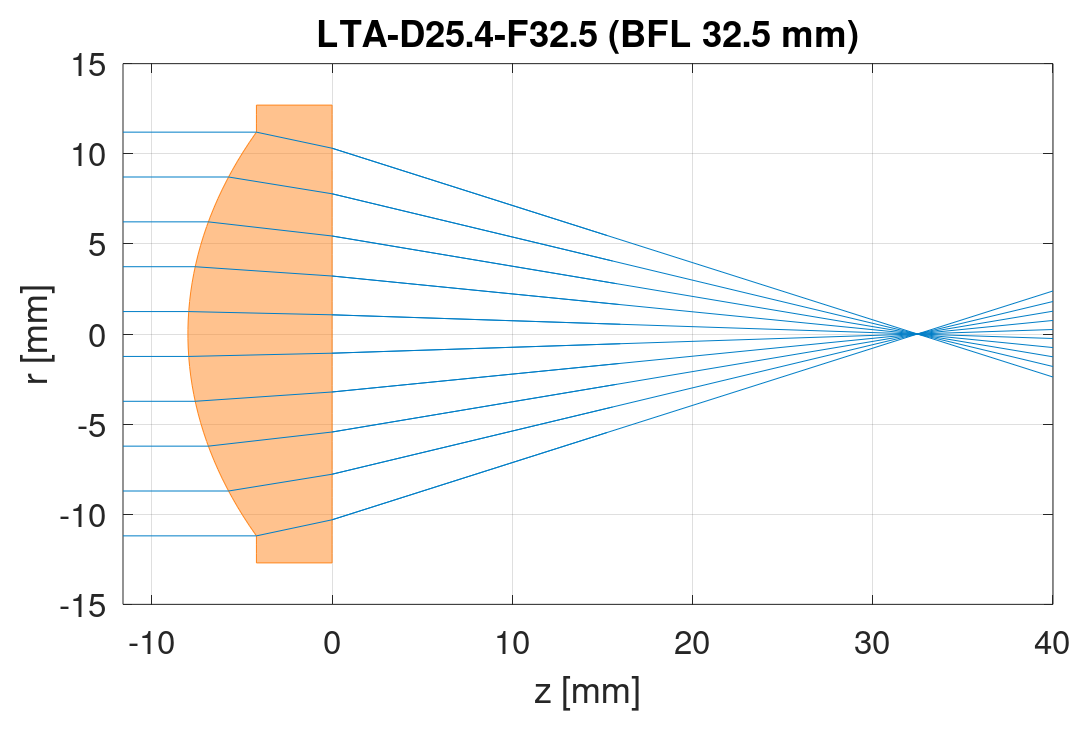

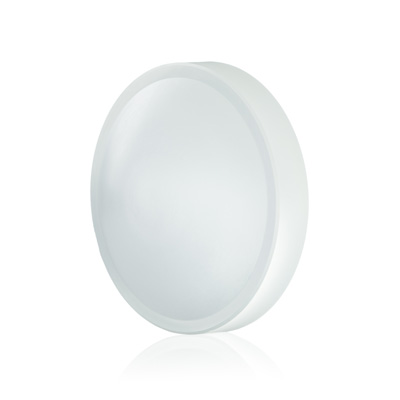

> LTA-D25.4-F32.5

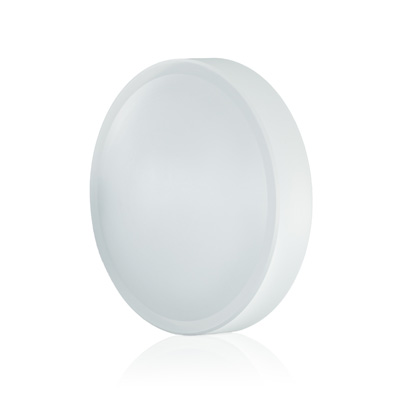

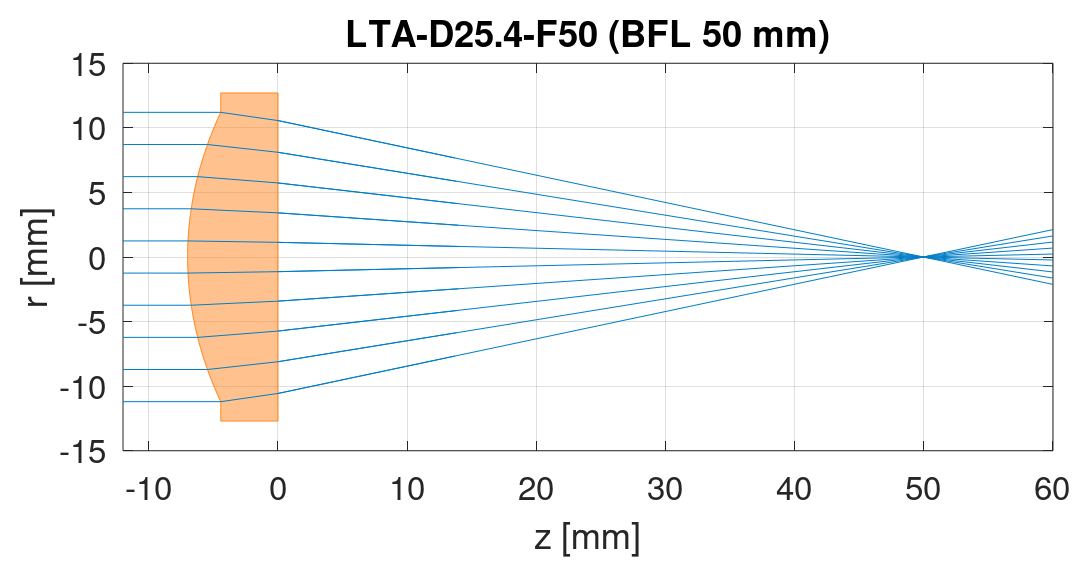

> LTA-D25.4-F50

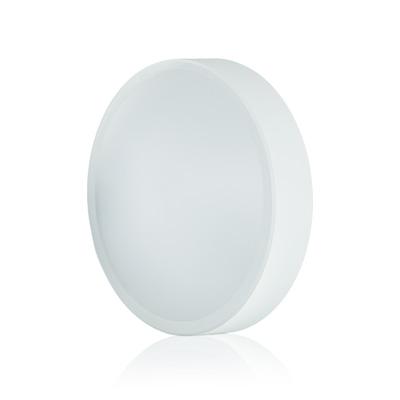

> LTA-D25.4-F67

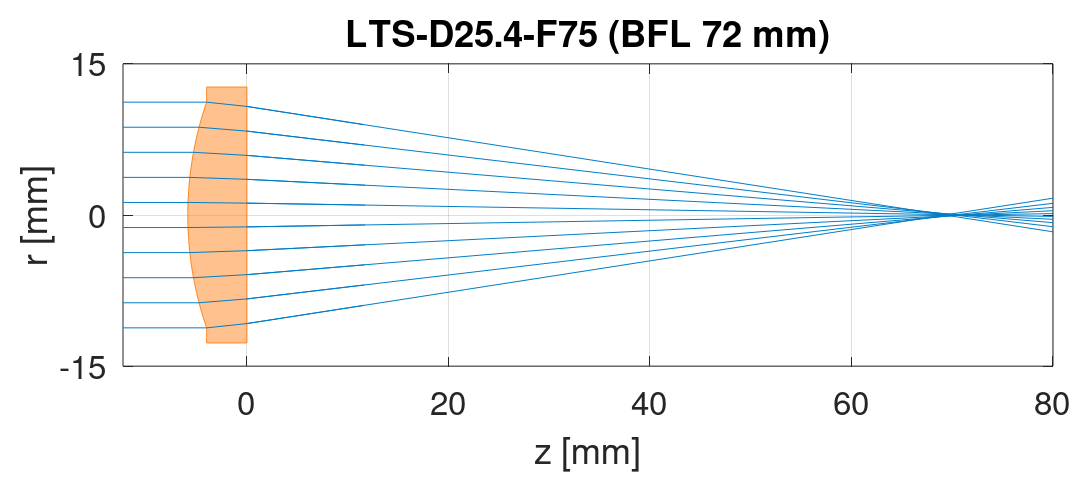

> LTS-D25.4-F75

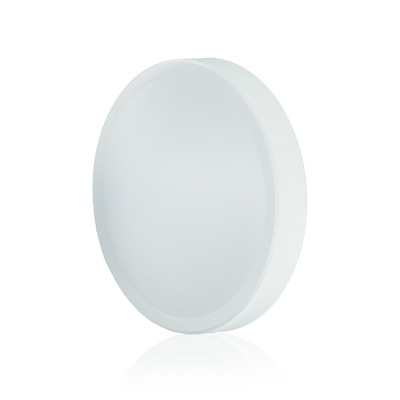

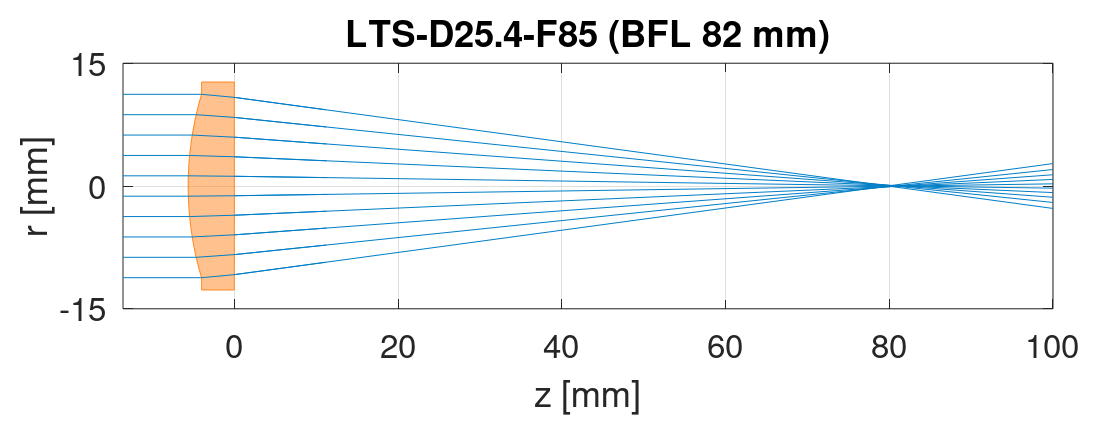

> LTS-D25.4-F85

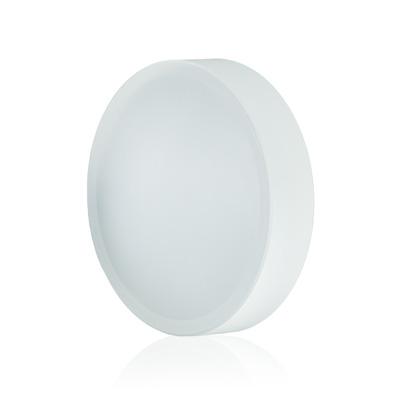

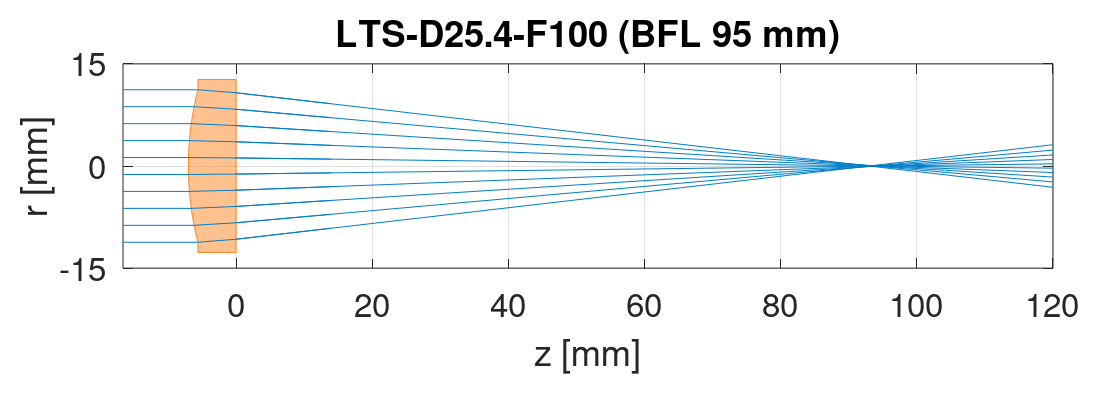

> LTS-D25.4-F100

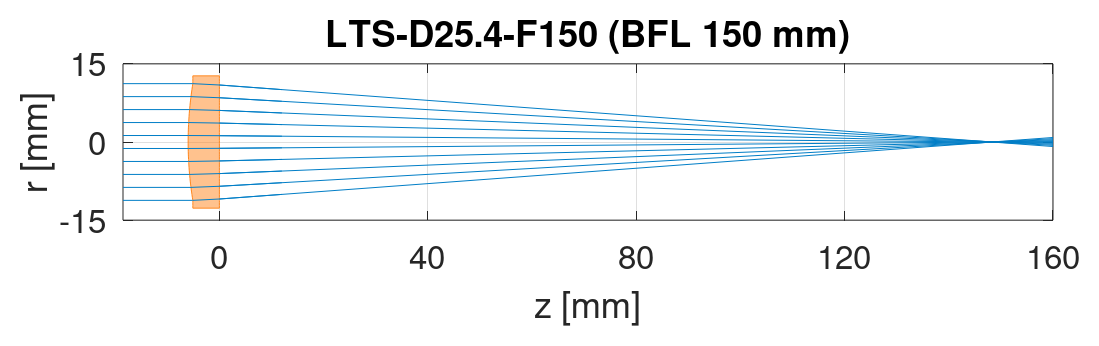

> LTS-D25.4-F150

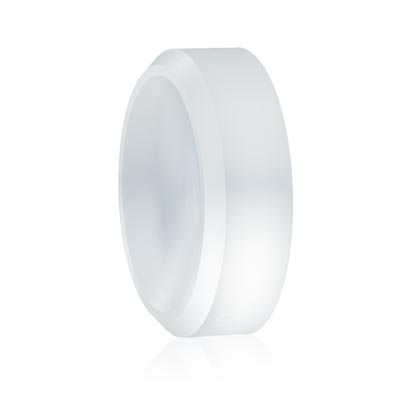

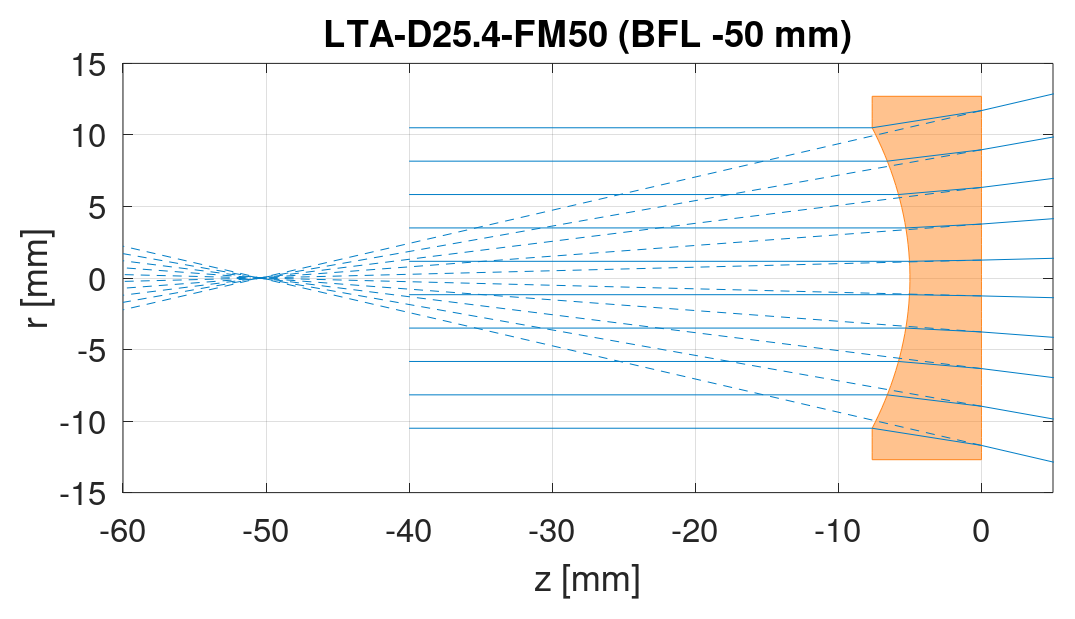

> LTA-D25.4-FM50

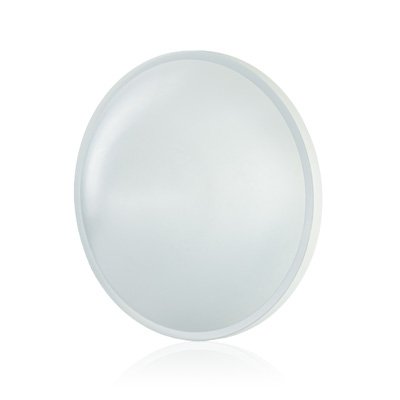

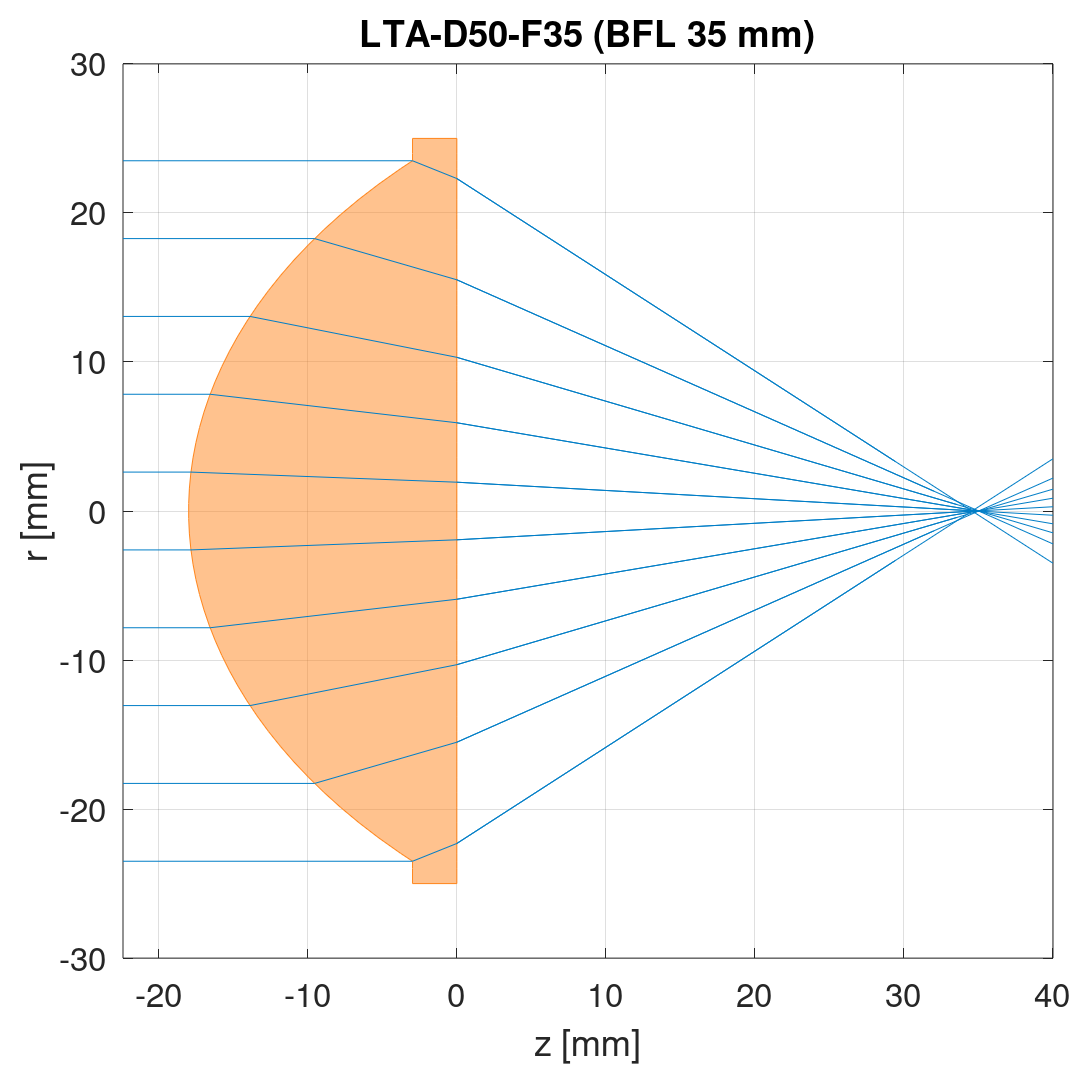

> LTA-D50-F35

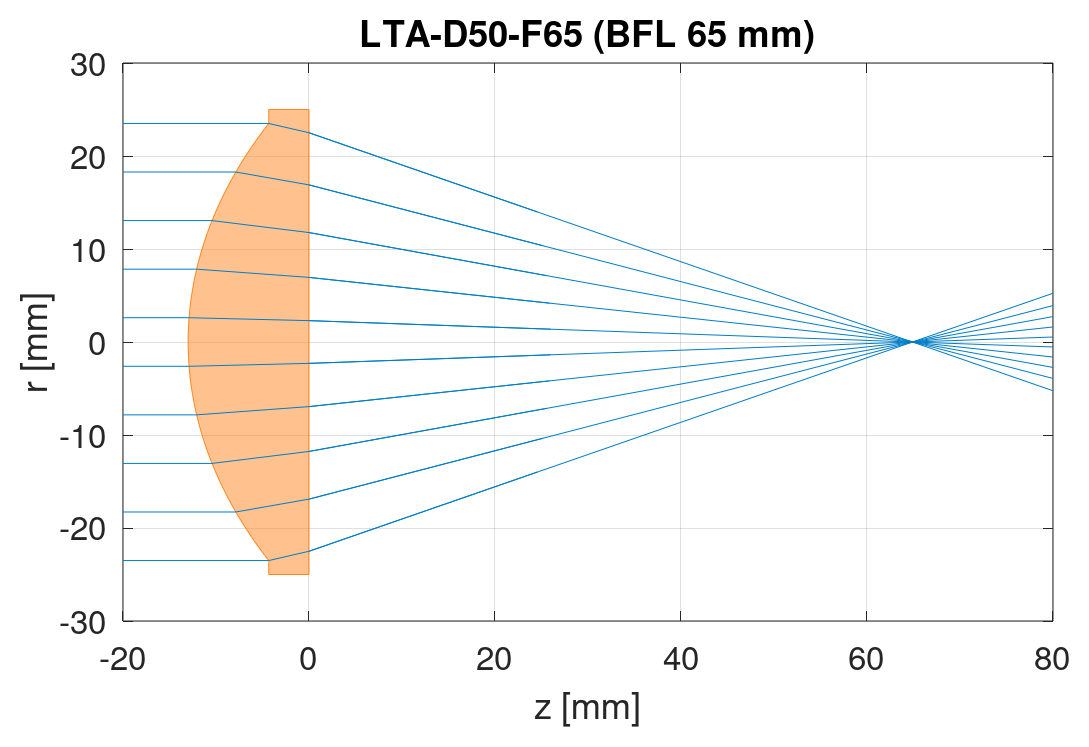

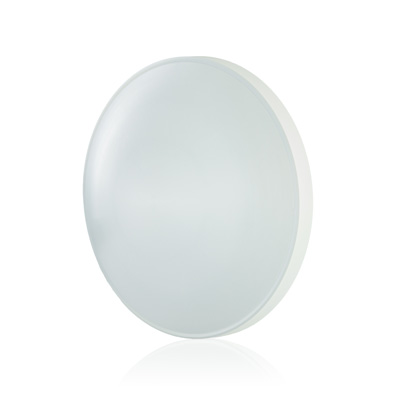

> LTA-D50-F65

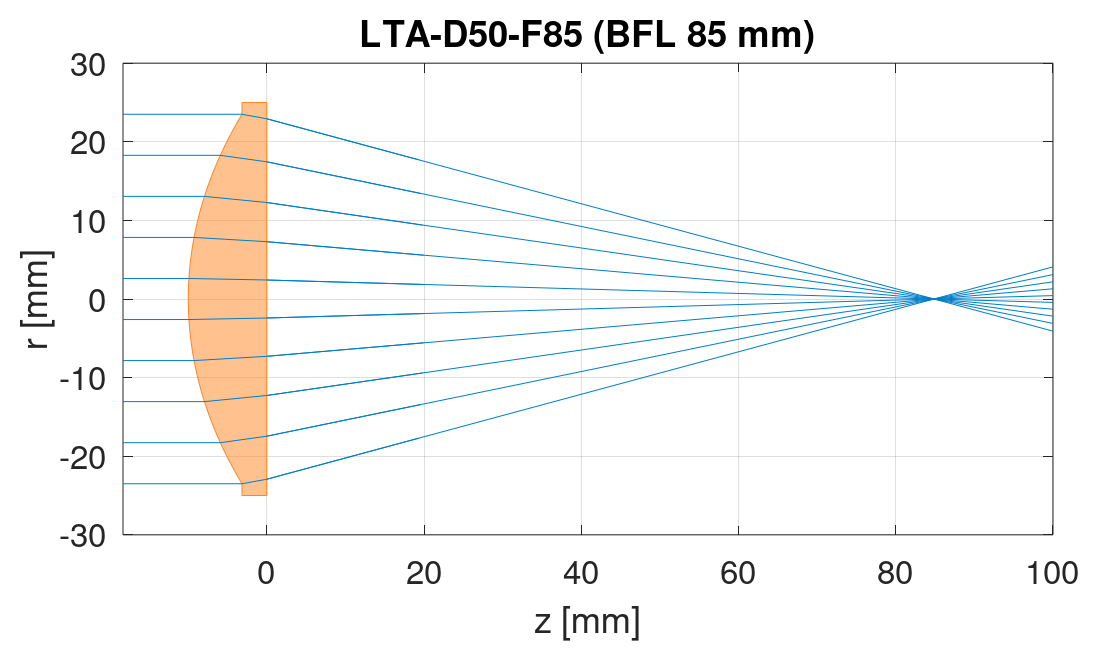

> LTA-D50-F85

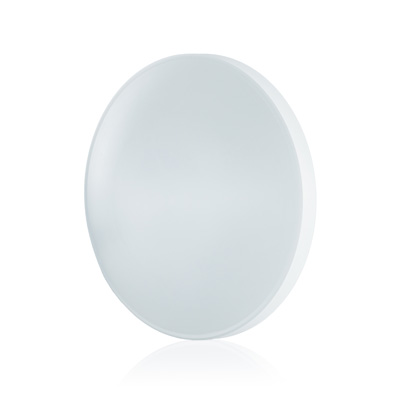

> LTA-D50-F100

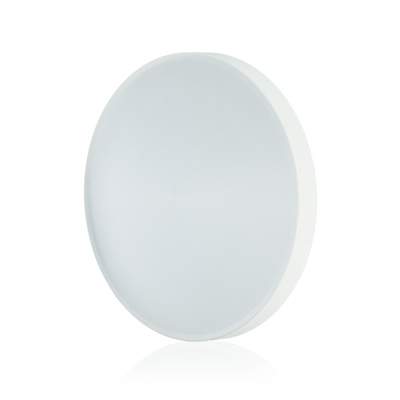

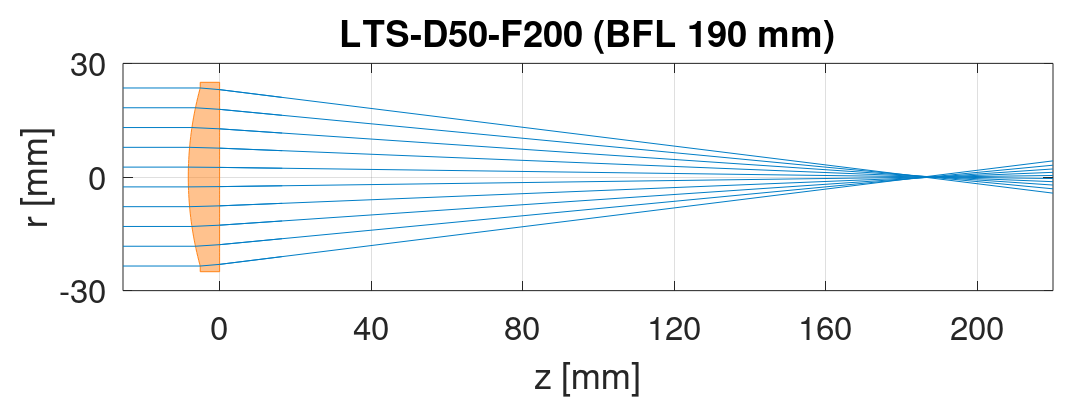

> LTS-D50-F200

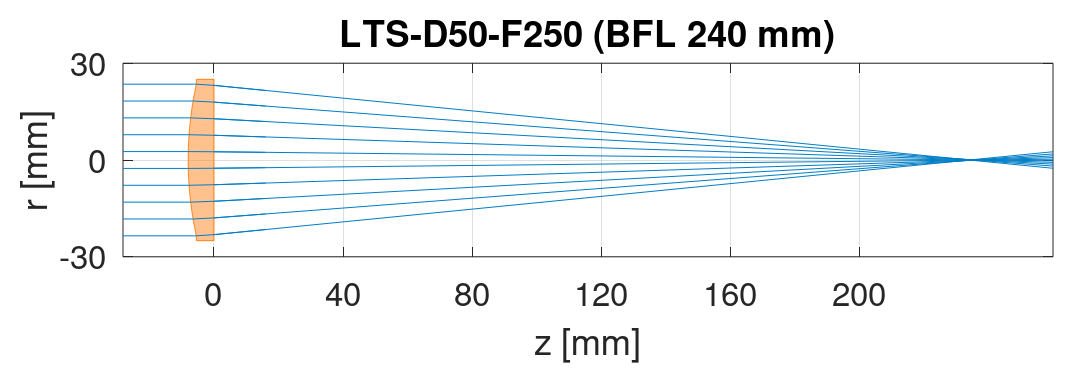

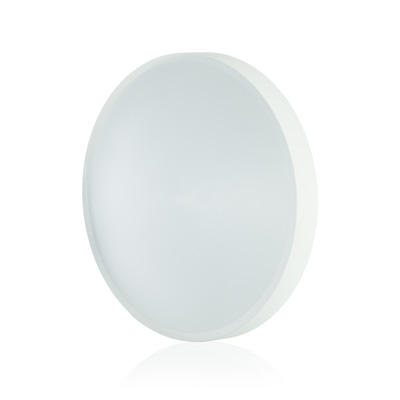

> LTS-D50-F250

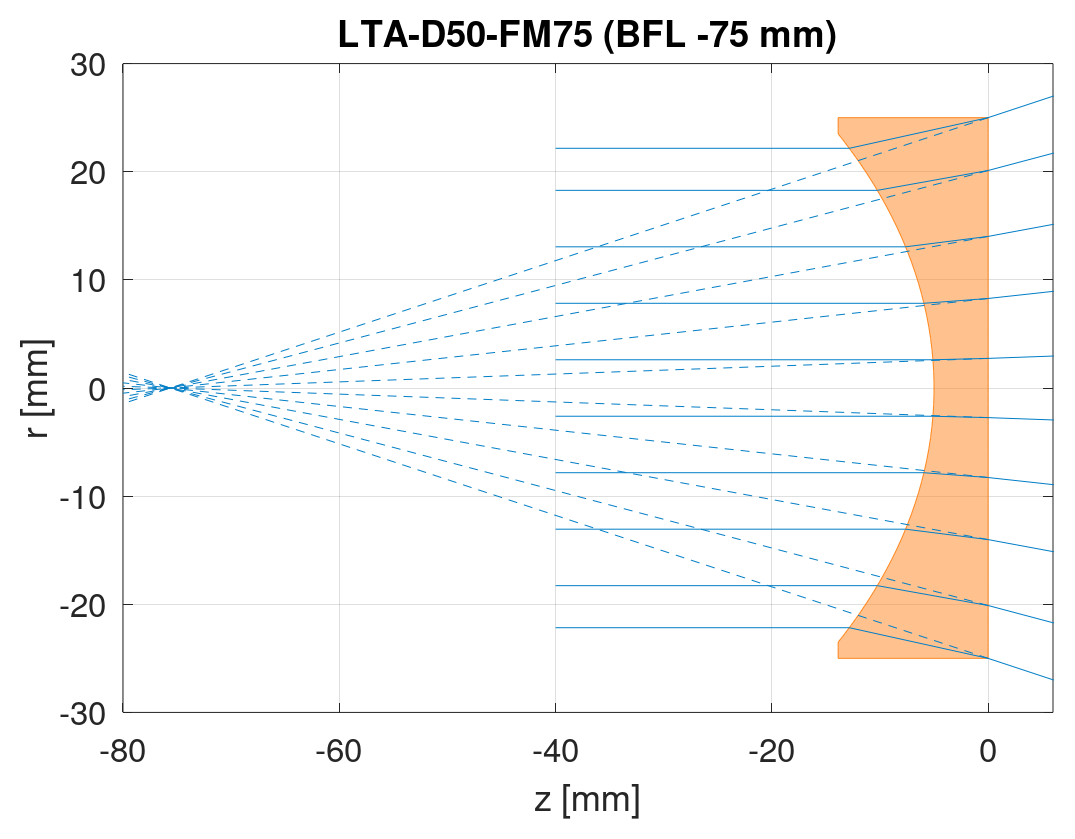

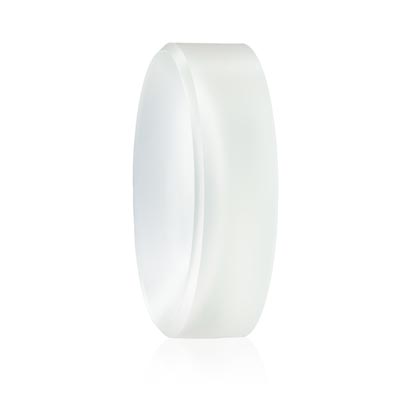

> LTA-D50-FM75

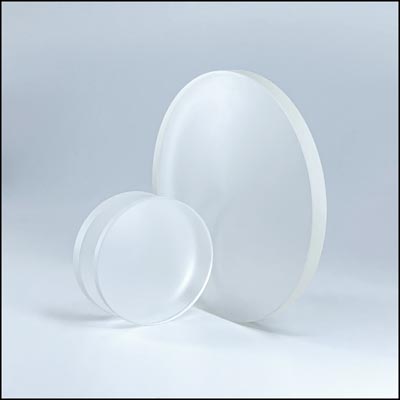

> WT-D25.4-T2
> WT-D25.4-T3.5
> WT-D50-T3.5
